Xinda precision machinery Company. is a professional manufacturer of plastic machinery , the PVC edge banding making machine , PVC edge banding printing line is our matured products , we have focused on plastic machinery over 20 years with rich experience and strong technology , our machinery has exported to over 20 countries , such as Vietnam , UAE , Africa , Germany , America , etc.
according to the customers’ feedback and market demands , we continue to perfect the design and quality , we promise you the top quality and the turn-key service including installation , testing run and training workers in your local factory . So we are your trustworthy partner ! we believe that our cooperation will benefit both of us, please contact Mr John Yu to get more details information . Tel : +86 (0) 13301561523 ; Email: admin@xinda-machinery.com

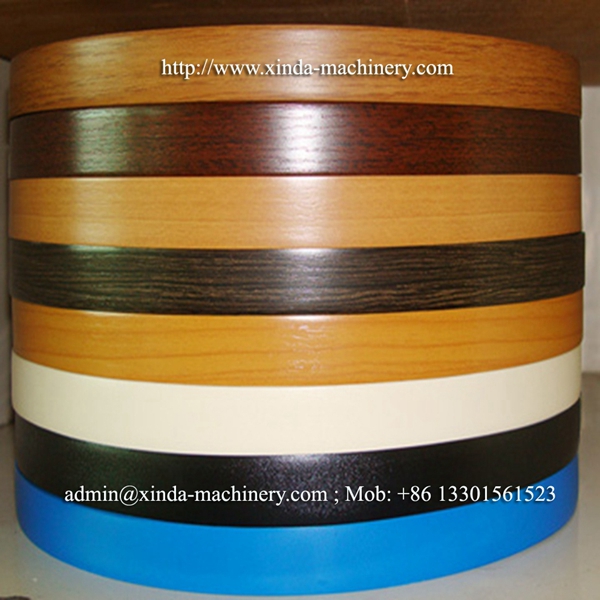

The PVC edge banding production line can printing 2 colors or 3 color design pattern , with high glossy or sub-glossy effect . It can printing 4 lines at the same time and with UV coating , we can design the pattern according to customers demands or sample . The main technology parameter :
| 1 | Model | PM-3 | |
| 2 | Max work-piece width | Mm | 240mm |
| 3 | Printing speed | M/min | 1-25m/min |
| 4 | Work piece thickness range | Mm | 0.5-5mm |
| 5 | Frequency converter | ||
| 6 | Background printing unit | 1 set | With roller 1pc,air pump 1 set, conveyor 3m,quartz lamp 3 sets ,axial flow fan 3 sets |
| 7 | Drying & conveying unit | 3 sets | Steel frame with air cooling & green conveying belt to transmit |
| 8 | Design printing unit | 2 sets | UV wheel 1pc , air pump 1 set, conveyor 1m, quartz lamp 1 set ,axial flow fan 1 set |
| 9 | Glazing unit | 2 sets | Polishing roller 2 sets , UV wheel 2 pieces ,air pump 1 set ,conveyor 1 set, axial flow fan 2 sets |
| 10 | Heating & flattening unit | 1 set | UV Lights 3 sets ,heating power 2.4kw |

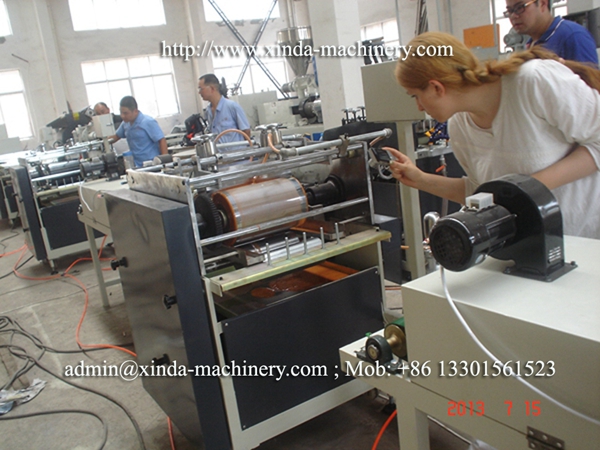

PVC edge banding printing line
PVC edge banding printing line
PVC edge banding printing machine
PVC tape printing machine
PVC edge banding printer
PVC edge banding printing line video :
