Xinda precision machinery Co., Ltd. is a professional manufacturer of plastic machinery , the 10-1000mm PE PP corrugated pipe production line is our advantage products , we have focus on the plastic machinery over 20 years with rich experience and strong technology support .we have expanded our business 25 countries & whole Chinese market , include the Middle East countries , Southeast Asia market , Africa market , Germany & Canada . our machinery won the wide support from the worldwide market owing to the perfect quality , reasonable design , high automatic degree , easy operation , please contact Mr John Yu to get more details information . Tel : +86 (0) 13301561523 ; Email: admin@xinda-machinery.com
Single-walled high-speed machine: module replacement is convenient, the production speed, high efficiency, stable performance can be high, steel tubes are of good quality and beautiful appearance.
Process flow:
Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugation forming machine → meter measurer→ double winder → finished product inspecting & packing
| Line Model | Extruder model | Production scope | Output | Total Power | Production speed |
| PE-40 | SJ-45/30 | Φ6-40mm | 60kg/h | 25KW | 6-10m/min |
| PE-63 | SJ-65/30 | Φ12-63mm | 80kg/h | 30KW | 6-10m/min |
| PA-40 | SJ-45/28 | Φ6-40mm | 60kg/h | 25KW | 6-10m/min |
| PVC-50 | SJ51/105 | Φ16-50mm | 100kg/h | 27KW | 6-10m/min |

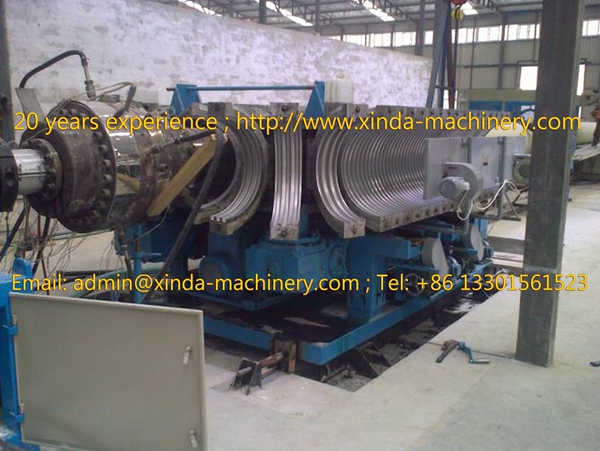

HDPE / PP double wall corrugated pipe is widely used.By the company absorbing foreign advanced technology, independent research and development of HDPE double-wall corrugated pipe production line, with a number of patented technologies, production diameter range 63mm -1000mm . High degree of automation, stable and high yield. New high efficiency single screw extruder, extrusion volume. Forming machine adopts horizontal structure, shuttle transmission, sealed water-cooled, vacuum forming, the original line double flaring.
Q: What is your advantage in this line?
A: Dear customer, we only focus on plastic extrusion machinery over 20 years with rich experience and strong technology support , manufacturing and development. We continues to improve our machinery at market demands and customer’s feed back , more reasonable design and top quality .
