Xinda precision machinery Co., Ltd. is a professional manufacturer of plastic machinery , we supply various plastic machinery , such as PVC/WPC board production line , PVC marble profile production line , PVC edge banding production line , PVC/PE/PP pipe production line , mill machinery , crusher , mixer machine , etc . we have focus on the plastic machinery over 20 years with rich experience and strong technology support .Xinda precision plastic machinery Co., Ltd. won the wide support from the worldwide market owing to the perfect quality , reasonable design , high automatic degree , easy operation , please contact Mr John Yu to get more details information . Tel : +86 (0) 13301561523 ; Email: admin@xinda-machinery.com
We supply the PVC PE PP mill machine , the model : SMP400 , SMP500 , SMF600 , SMF800 ,SMWP500 (this model is combined the crusher and mill machine together)
The production capacity 50-500kg/h
The main parameter as below :
| 1 | Model | SMP-500 | |
| 2 | Inner diameter of crushing room | mm | Ф500 |
| 3 | Motor power | KW | 55 |
| 4 | Crushing capacity | Kg/h | 200-300 |
| 5 | Main axes rotating speed | r/min | 3200 |
| 6 | Cutter head. Qty/Dia. | 1set/500mm | |
| 7 | Blade Qty. | Pcs | 36 |
| 8 | Blower motor power | Kw | 5.5 |
| 9 | Vibrating screen motor power | Kw | 0.75 |
| 10 | Vibrating frequency | t/min | 1440 |
| 11 | Diameter of vibrating screen | Mm | 1000 |
| 12 | Dimensions | mm | 1650X1500X1630 |
| 13 | N.W | kg | 1700 |
| 14 | Application | PVC,PE etc recycling mill |
SMWP500 crusher & mill combined machine
| Model | SMWP500 |
| 破碎磨粉进料口尺寸/Inlet size | 200X200mm |
| 破碎磨粉能力/crush & mill capacity | 500-600kg/h |
| 磨粉粒度/mill fineness | 10-60M |
| 磨盘直径/mill plate diameter | 800mm |
| 磨粉刀数量/mill blade quantity | 4 pcs |
| 旋转刀数量/rotation blade quanity | 96 pcs |
| 磨粉机刀片材质/blade material | High speed tool steel |
| 振动筛/vibration sieve | 0.75kw |
| 冷却介质/cooling medium | Recycled water |
| 轴承/bears | NSK |
| 电机功率/main motor power | 55kw |
| 风机功率/cyclone motor power | 4kw |
| 输送管材质/conveyor pipe | Stainless steel |
| 集料仓/storage bin | Stainless steel |
| 破碎磨粉机外形尺寸/dimensions | 2000*2450mm*1300mm |
| 机器重量/N.W. | 1000kg |
mill machine images :

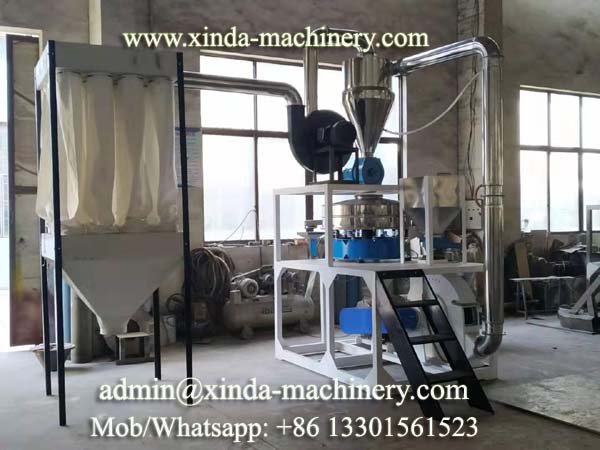

mill machine

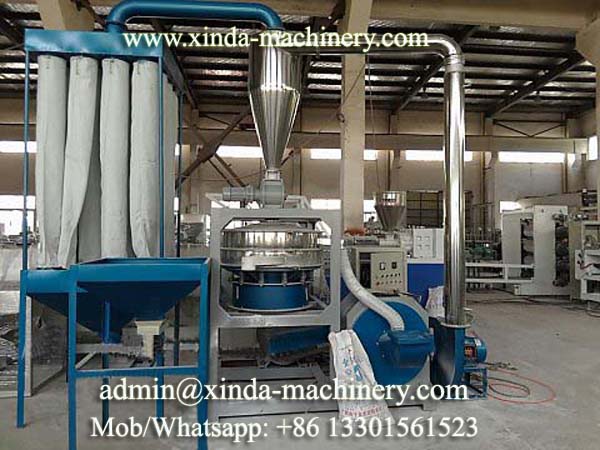

PE PP mill machine

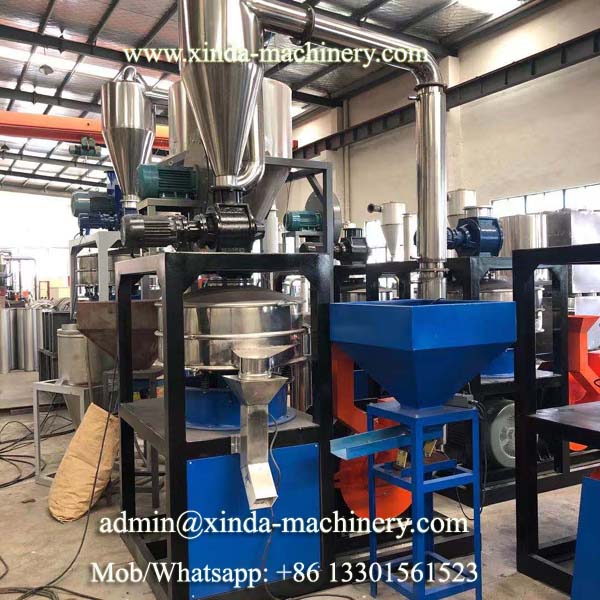

plastic mill machine
test running video :
